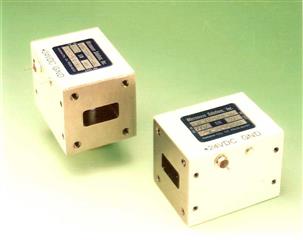

Low Noise Amplifiers

Performance and value engineered to spec.

APPLICATIONS

AVAILABLE FEATURES

  • VSAT



  • Test Systems & Setup



  • Satelite DOWN LINK



  • Radar Systems



  • VAV Tracking



  • Wide Frequency Range



  • Competitive Pricing



  • Reverse Polarity Protection



  • Hermetic Seal Available



  • Temperature Compensation Available



  • Full Military Screening Available



  • Incorporated Voltage Regulator



  • Unconditionally Stable



The model numbers below are only a fraction of what is available at Microwave Solutions Inc. and are intended to demonstrate capabilities. Please do not hesitate to contact Microwave Solution’s sale applications department to discuss customized solutions, most without any development costs or impact to delivery.

MSD-2251202

1.0 - 2.0

14

1.5

10

19

2.0:1

12

90

MSD-3641301

2.0 - 2.5

38

1.5

15

24

2.0:1

12

120

MSH-4551301

2.0 - 4.0

35

2.7

15

24

2.0:1

12

180

MSH-4572501

2.0 - 6.0

33

2.8

23

32

2.0:1

12

375

MSH-4311301

3.7 - 4.2

23

1.5

13

22

1.5:1

12

80

MSH-5652402

4.0 - 8.0

39

3

18

27

2.0:1

12

270

MSD-4312203

4.4 - 5.0

20

1.5

10

19

1.5:1

12

75

MSH-4421304-DI

5.3-5.9

30

1.5

13

---

1.5:1

12

120

MSH-5711401-DI

5.9-6.4

45

1.6

18

---

2.0:1

12

200

MSD-5422301

6.4 - 7.2

29

2.2

15

24

1.5:1

12

120

MSD-5411001

7.25 - 7.75

27

1

0.0

--

2.0:1

12

150

MSH-6512304

7.7 - 8.5

34

2.2

13

22

1.5:1

12

180

MSH-6443301

8.0 - 11.0

29

3.5

13

22

2.0:1

12

200

MSH-6622301

8.5 - 9.6

37

2.5

13

22

1.5:1

12

210

MSH-6512301

9.0 - 9.9

36

2.2

15

25

1.5:1

12

250

MSH-6312301

10.7 - 11.7

24

2.7

13

22

1.5:1

12

150

MSH-7502202

11.7 - 12.2

32

2.5

10

19

1.5:1

12

120

MSH-7403202

12.7 - 13.2

26

2.5

14

23

1.5:1

12

150

MSH-7303201

14.0 - 14.5

21

3.5

10

19

2.0:1

12

150

MSH-7533301

14.0 - 16.5

33

3.5

13

22

2.0:1

12

240

MSH-7423201

16.0 - 18.0

27

4.5

10

19

2.0:1

12

200

MSH-7403302

18.1 - 18.6

29

4

12

21

2.0:1

12

290

MSH-8323201

18.0 - 21.0

19

4

10

19

2.0:1

12

200

MSH-8413301

21.0 - 23.0

29

4

12

21

2.0:1

12

290



Model #

Freq. (GHz)

Gain

Min.

N.F.

Max.

P1dB

Max.

Typ. IP3

VSWR (I/O)

DC VDC

Current



The amplifiers listed above can be customized to meet customer's specific requirements. Specifications are listed at 25°C unless otherwise specified.

Usable operating case temperature is typically -55 to+85°C. Typical connectors SMA-F(I/O). Waveguide connectors are available upon request.
